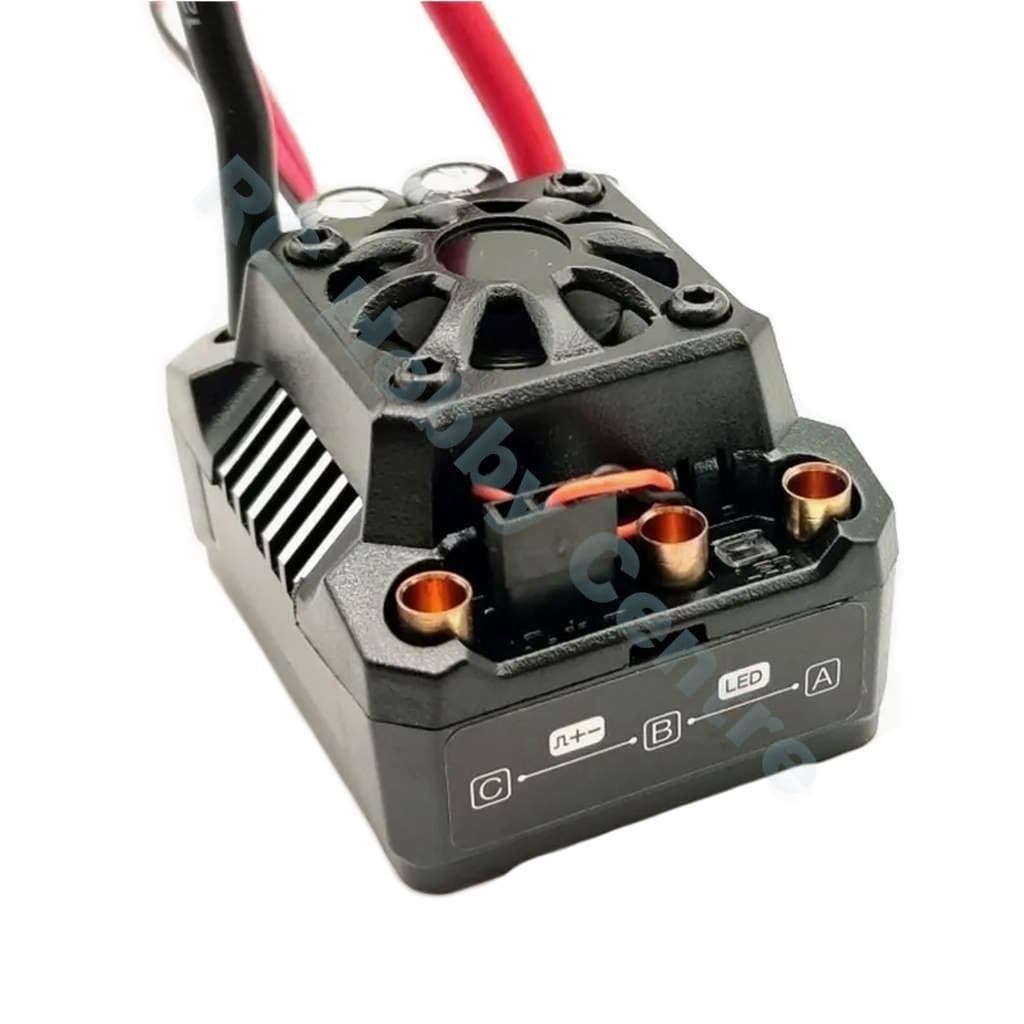

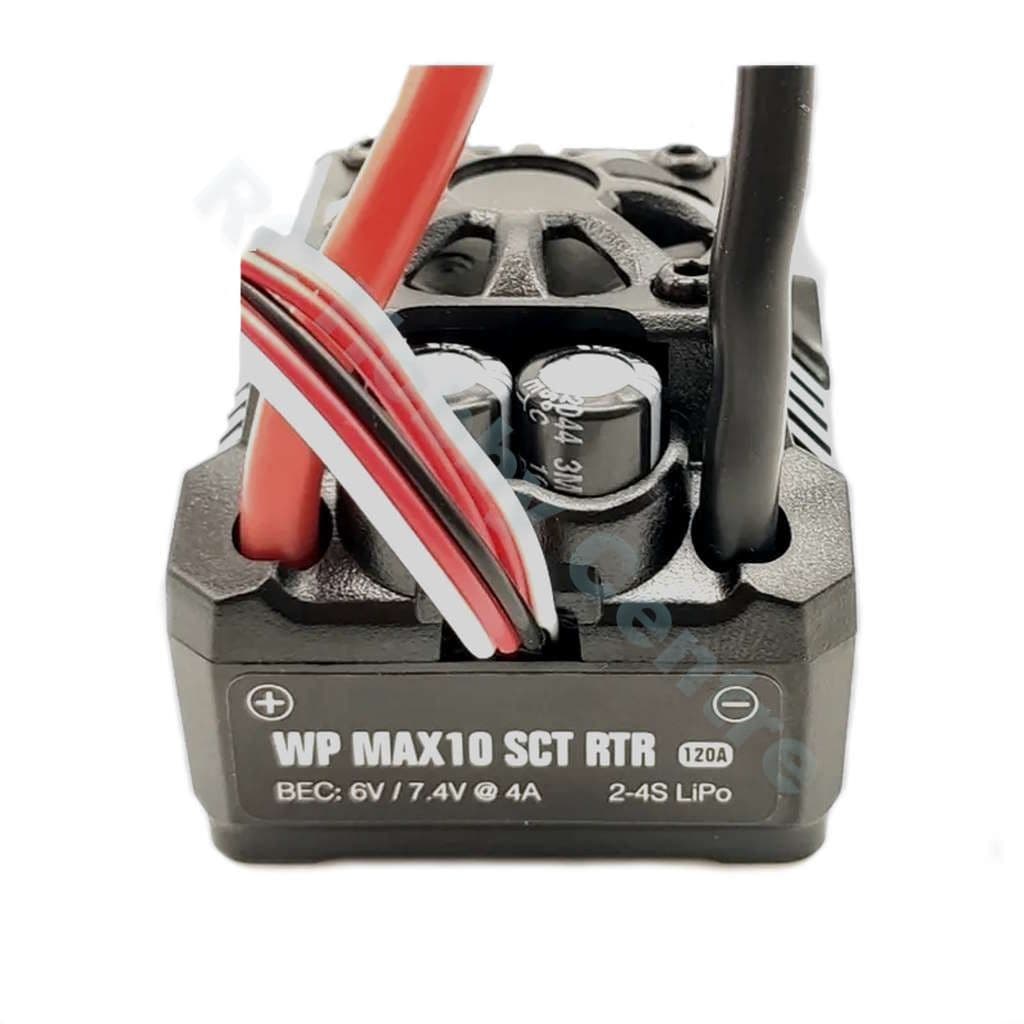

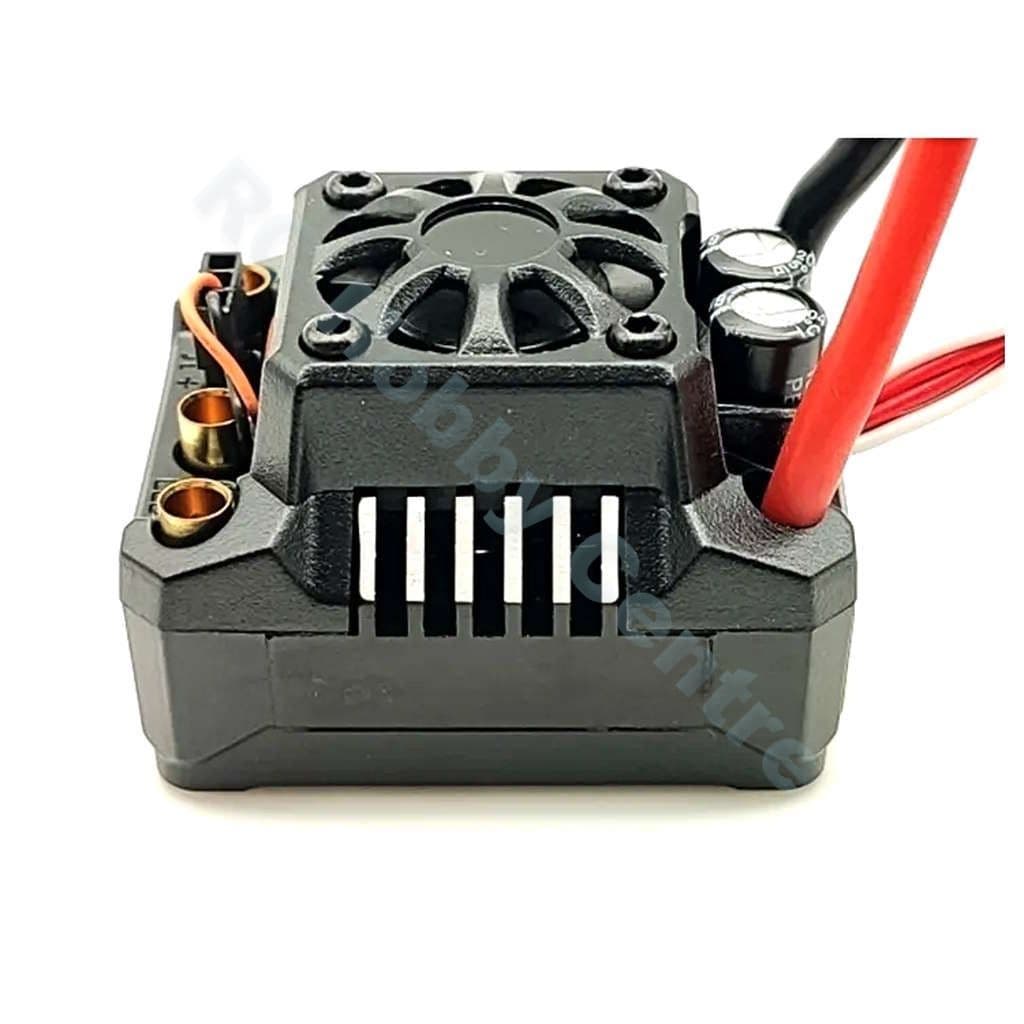

WP-MAX10-SCT RTR Brushless 120A ESC - XT-60 Plug
Hobbywings MAX10 series waterproof brushless Speed Controller series and is the 120A (830A) sensorless version fitted with a XT-60 battery connector.
Tuned to suit larger Monster Trucks and Short Course Trucks. (SCT) but will work fine in RC 1/10th and 1/8th Buggy's and Cars.
Features
Water-resistant and dust-proof for all-weather races. (Note: please remove the cooling fan before using this ESC in water; clean and dry it soon after the use for avoiding the connectors get rusty.)
External programming port, easy to connect to the Program Card when setting the ESC. Proportional brake with 8 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
5 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tyres and tracks.
Multiple protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection.
One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
Compatible with the "HW-LED-PC2" the LED Program Box, especially convenient for outdoor use.
Specifications
Current - 120A/830A (nominal/peak)
Input - 2S-4S Lipo or 6-12 cell NiMH.
BEC Output - 6V or 7.4V at 4A (Switch Mode)
Resistance - <0.001 Ohm
Motor Supported - Sensorless Brushless Motor (compatible with sensored motor but not in sensored operating mode)
Cooling Fan - Gets working voltage internal regulator.
Weight - 105g

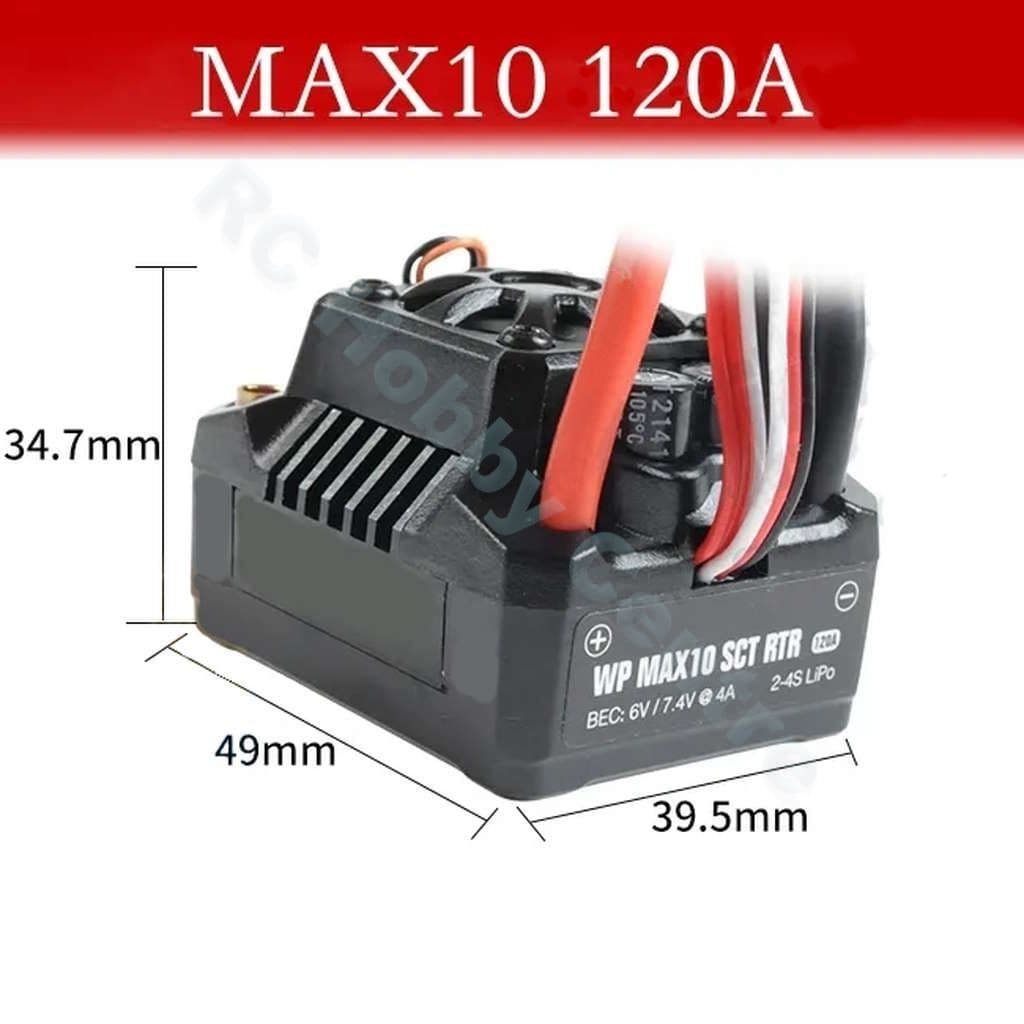

Size - 49(L)X39.5(W)X34.7(H)mm
Motor Limit - For 2S Lipo or 6 cells NiMH:
Off-road/SCT/Buggy/Monster: 36xx-size or smaller motor with the KV<6000
Motor Limit - For 3S Lipo or 9 cells NiMH
Off-road/SCT/Buggy/Monster: 36xx-size or smaller motor with a KV<4000
Motor Limit - For 4S Lipo or 12 cells NiMH
Off-road/SCT/Monster: 36xx-size or smaller motor with a KV<3000
HSP Models Applicable - 1:8 Off-road//Monster Truck/ SCT
Programmable Items
1. Run Mode: Forward/Brake - Forward/Reverse/Brake.
2. Drag Brake Force: 0%, 5%, 10%, 20%, 40%, 60%, 80%, 100%
3. Low Voltage Cut off: Disabled, 2.6V/Cell, 2.8V/Cell, 3.0V/Cell, 3.2V/Cell, 3.4V/Cell
4. Start Mode (Punch): 5 levels (from soft to aggressive)
5. Max Brake Force: 12.5%, 25%, 37.5%, 50%, 62.5%, 75%, 87.5%, 100%, Disabled
6. Max. Reverse Force: 25%, 50%
7. BEC Voltage: 6.0V or 7.4V (4A max)
8. Neutral Throttle Range: 6%, 9%, 12%
9. Throttle signal loss protection.

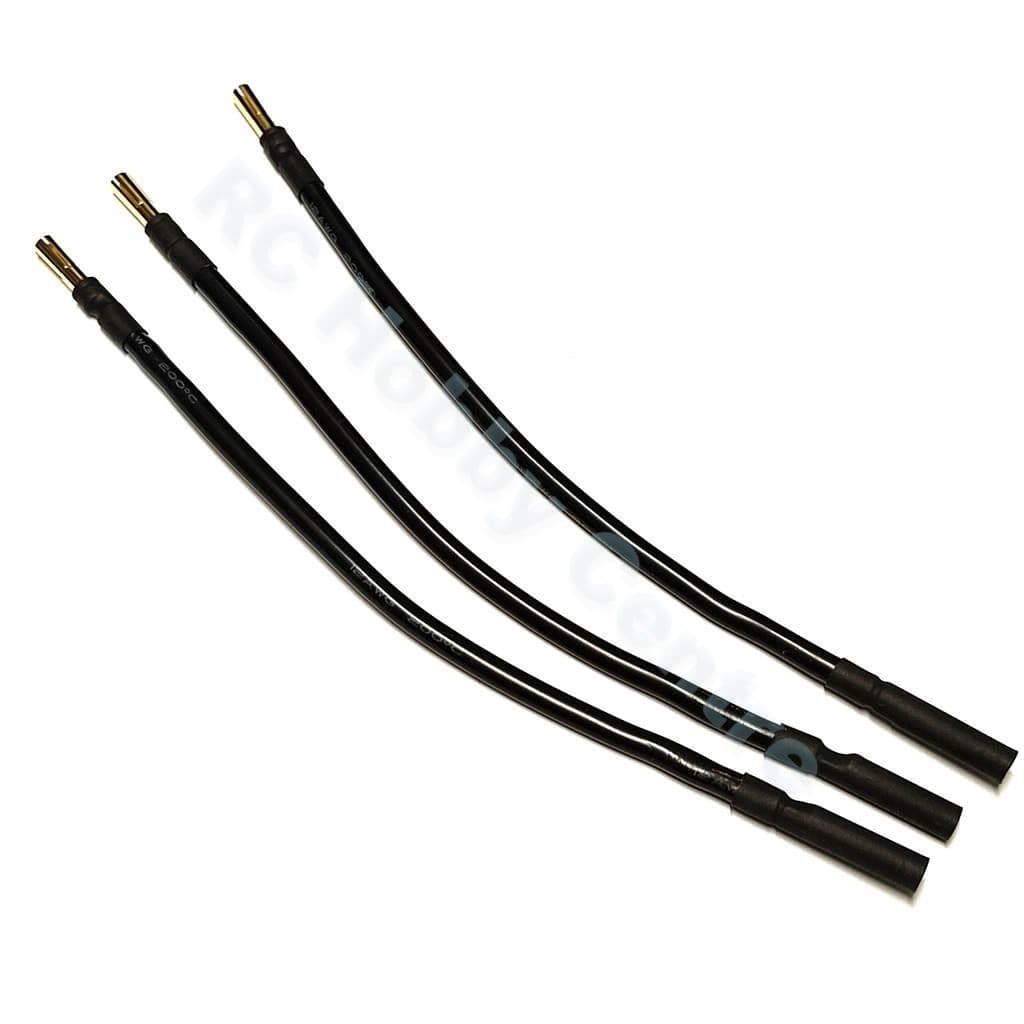

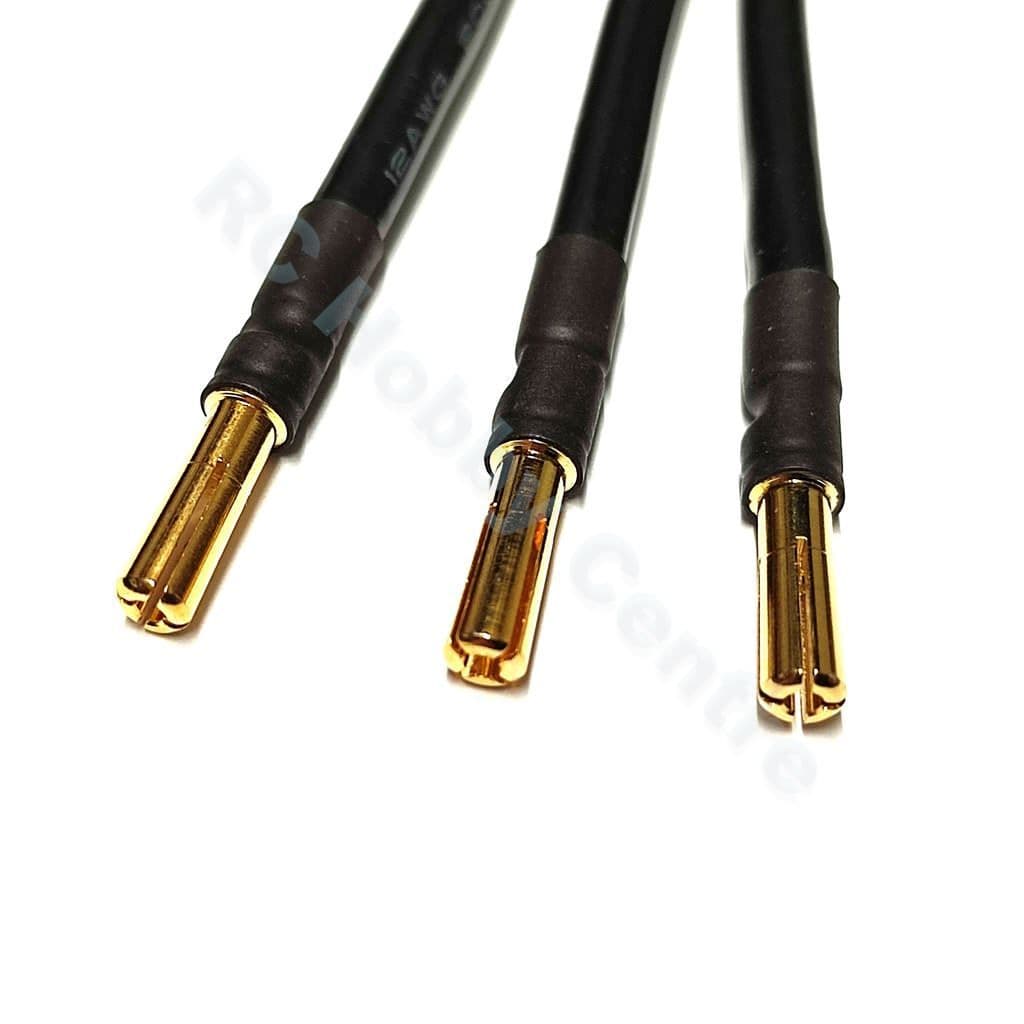

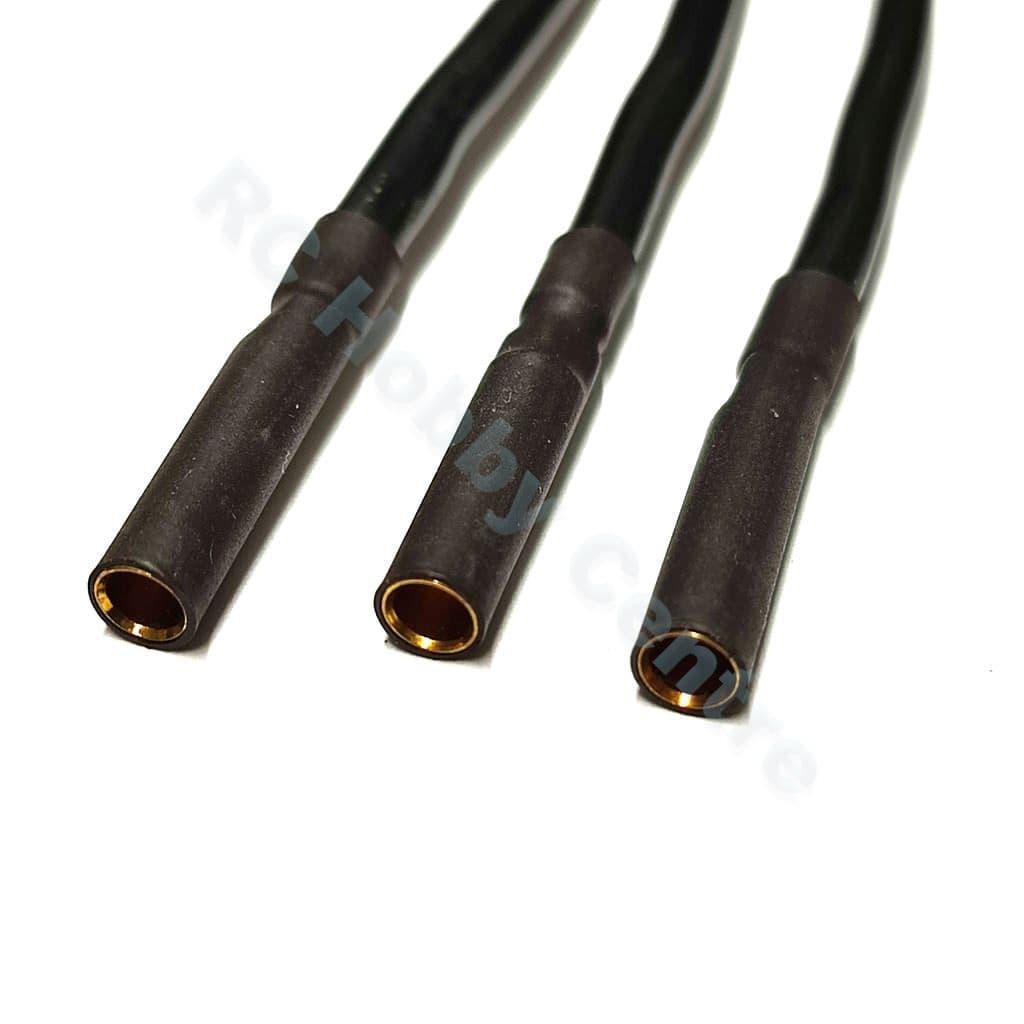

Motor connectors: 4mm female gold bullets fitted. 3 Gold plated output leads included.

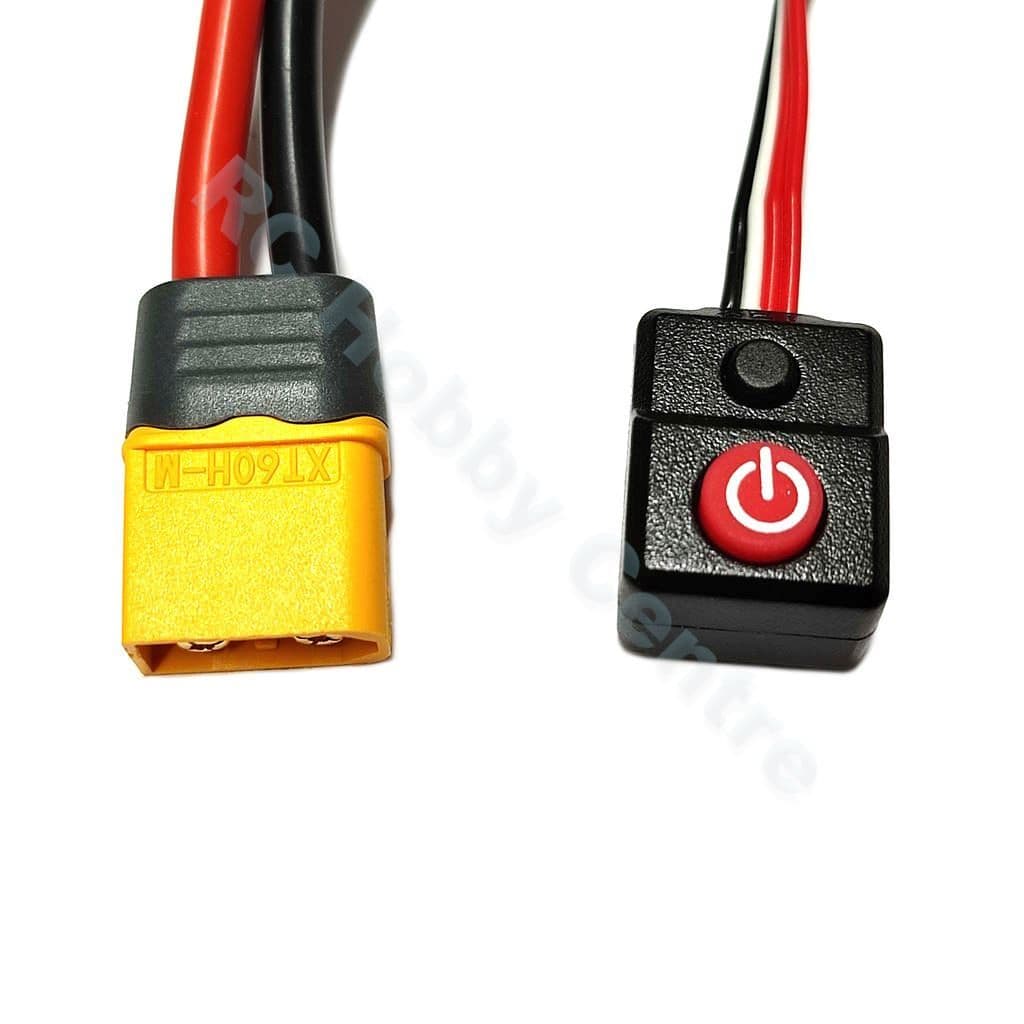

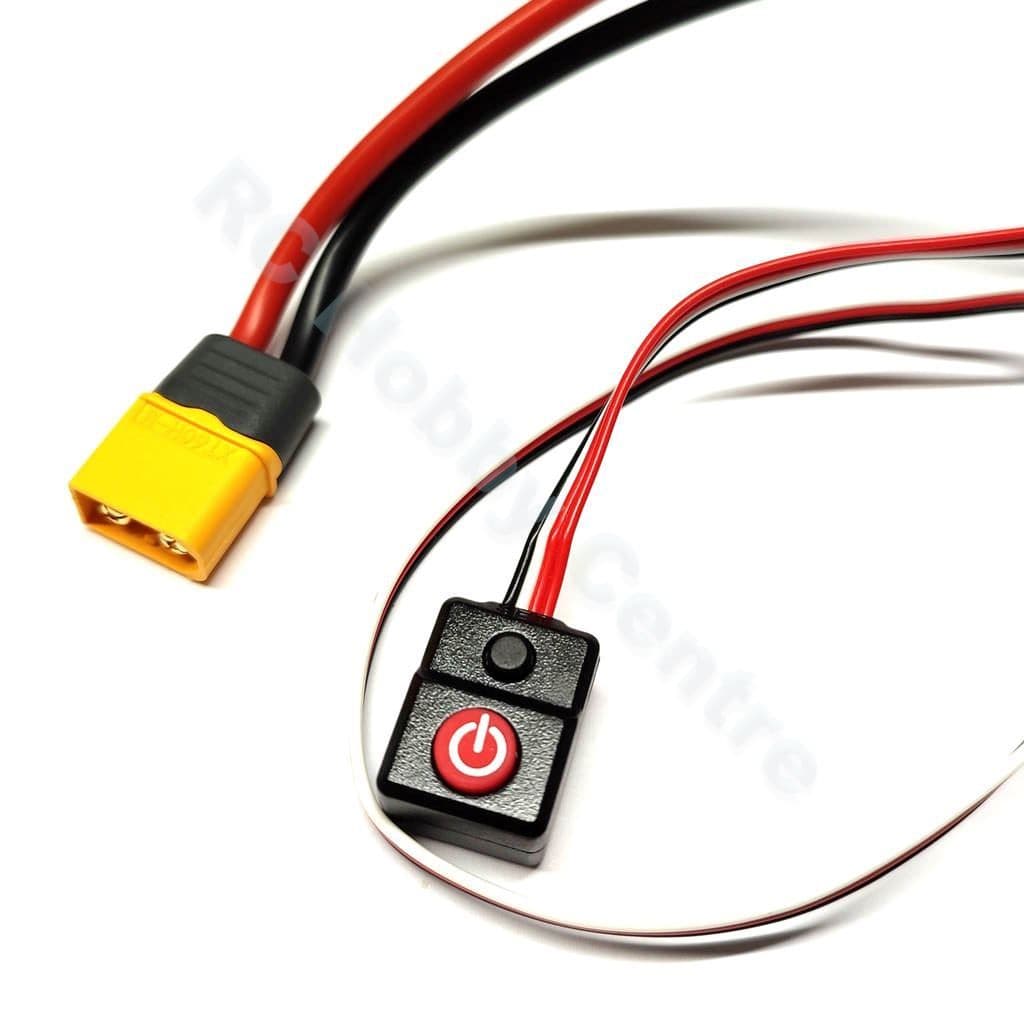

Battery connector: XT-60
