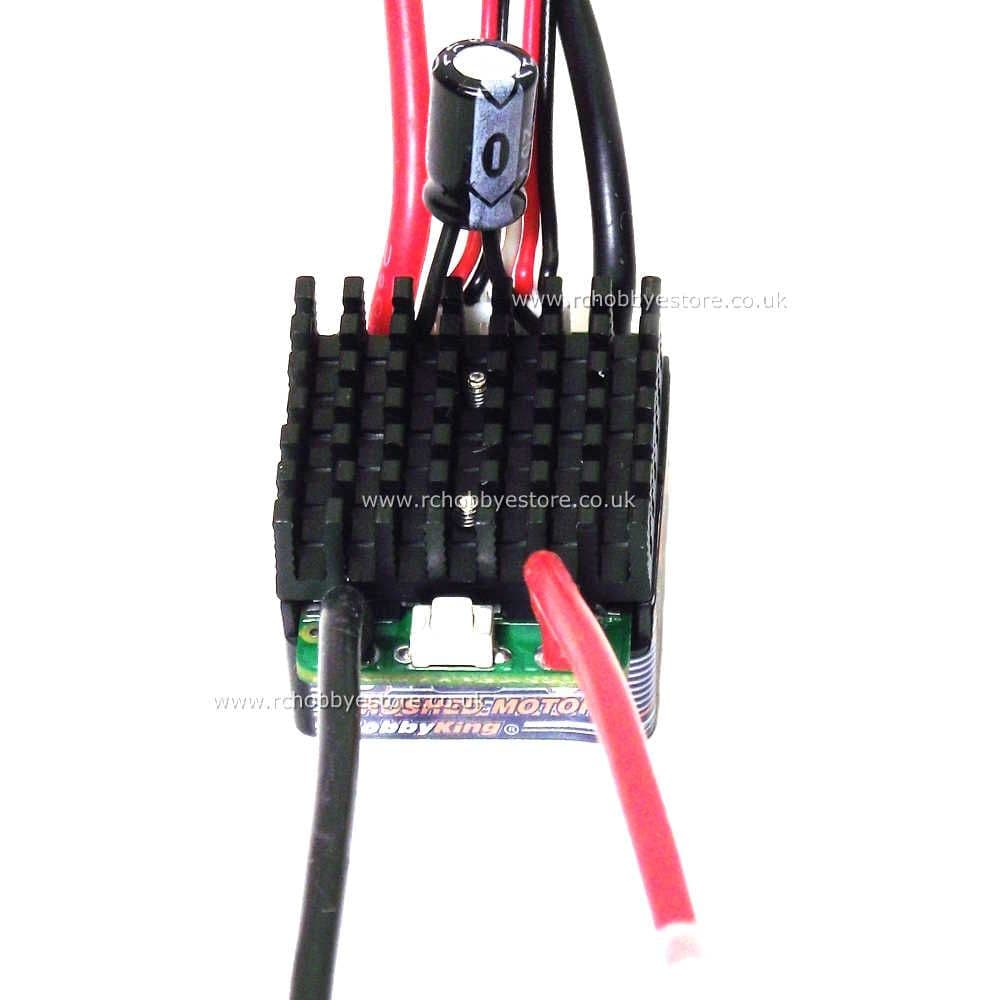

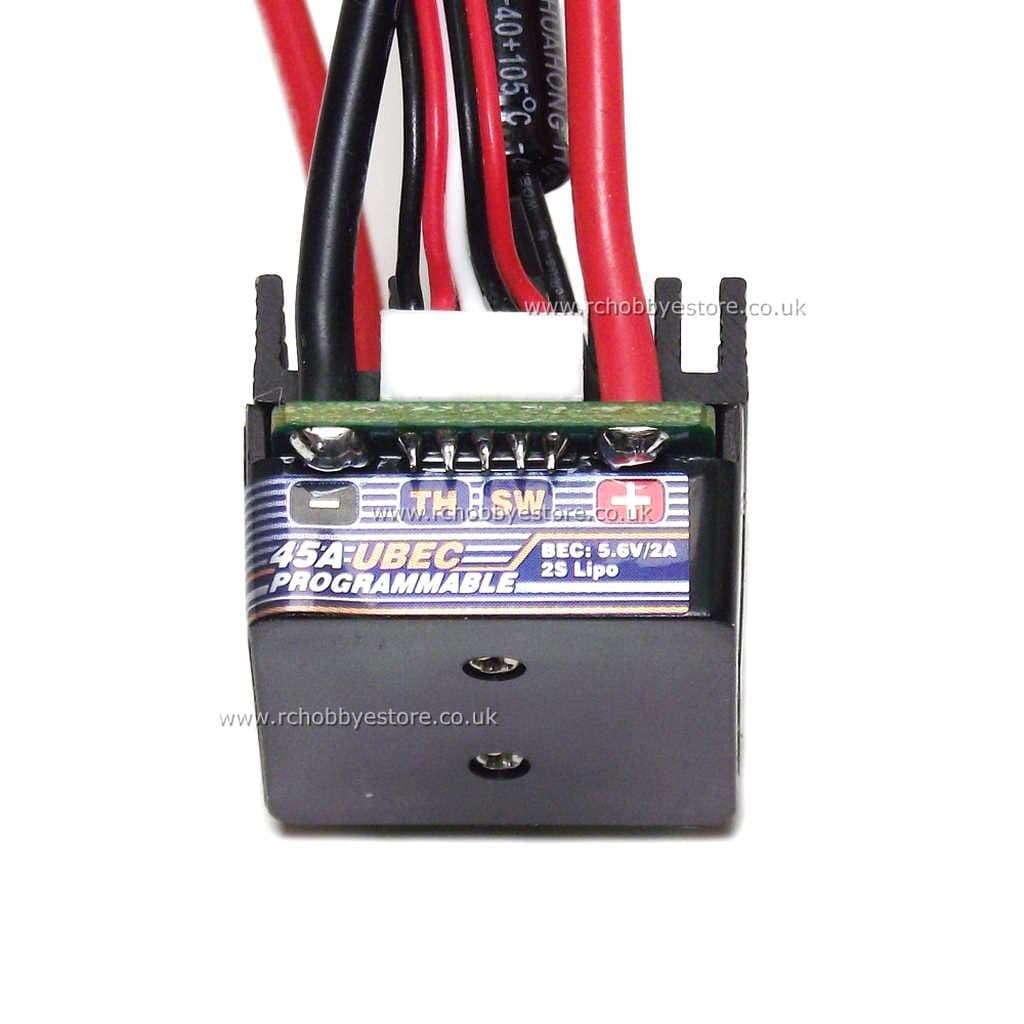

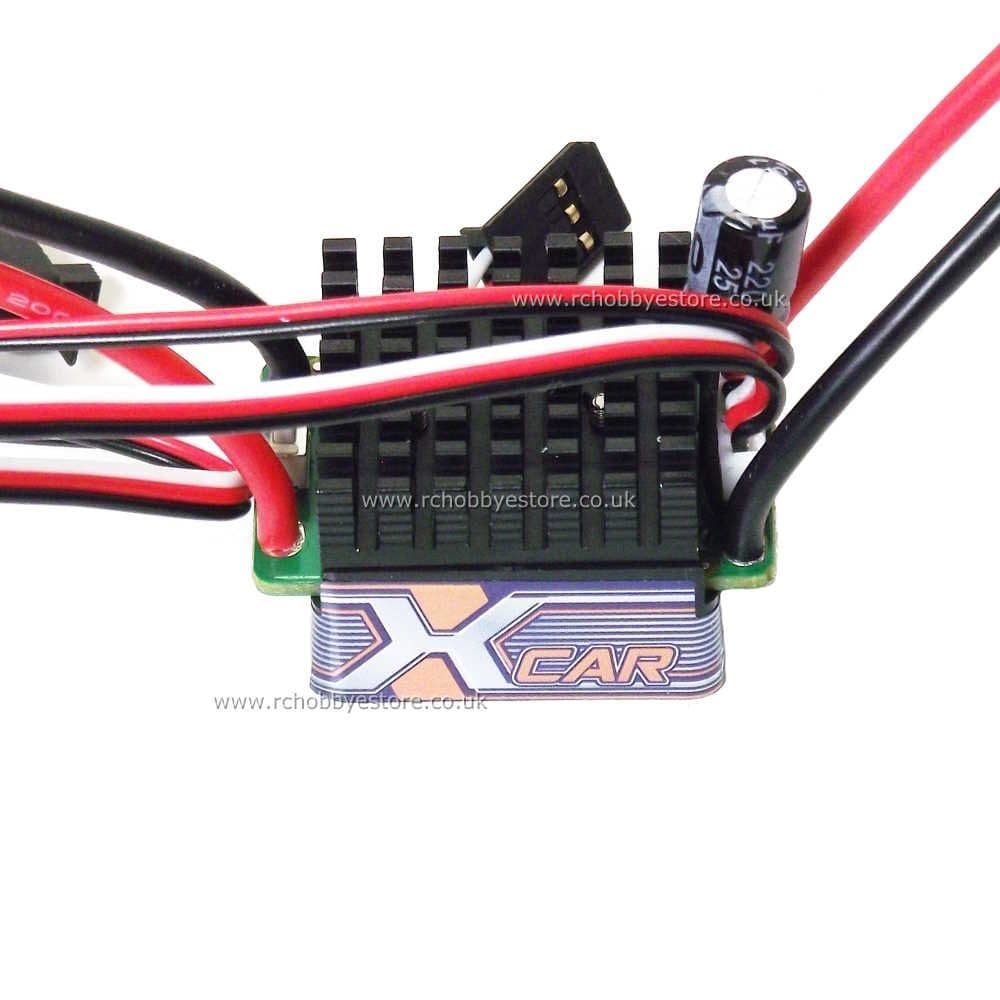

X-CAR 45A ESC for Crawler or Car using a brushed motor

The X-Car 45A Electronic speed controller is perfect for brushed motor Cars and Crawlers. Simple to use with two modes of operation. Standard mode for Cars and Crawler Mode for Rock Crawlers.

Crawler mode has automatic drag brake allowing is to hold fast on steep inclines giving full control of your descents.

Small and light weight measuring just 30mm x 28mm at the base. Height (not including capacitor) is just 22mm. By using low on resistance FETs allows this ESC to be used without a cooling fan and has a build in UBEC for more efficiency servo power.

Considering the low price, this is a great little speed controller for 1/10th scale models with a brushed motor.

Features

    Suitable for 1/10 Truck, Car & Buggy.
    Auto record Neutral Point.
    Programmable LiPo Battery Low Voltage protection.
    Programmable Thermal Protection.
    2 Modes available: Standard Car & Climbing.

Specifications

    Input Voltage: 6 - 7.2v (NiMh) / 7.4v (LiPo).
    Output Current: 45A continuous, 340A burst (10 Sec).
    UBEC Current: 5.6v / 2A.

Download instruction manual.
