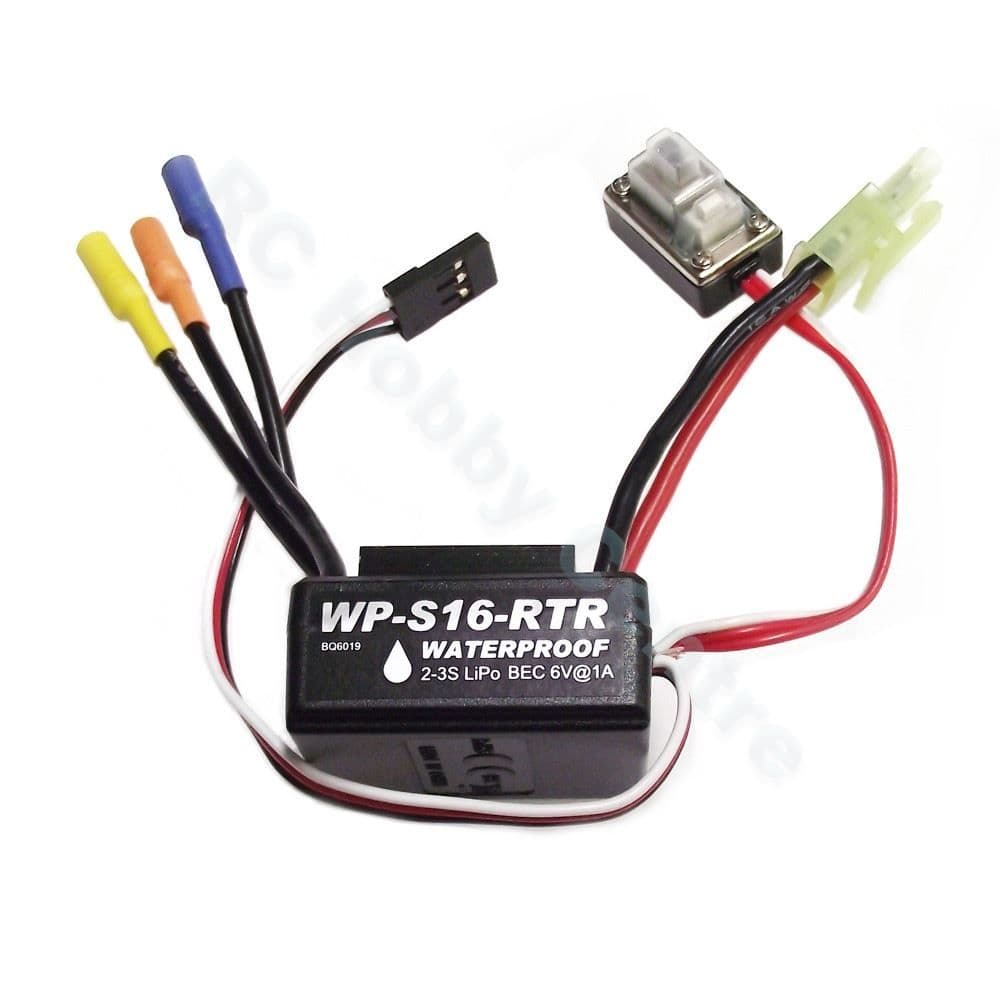

28405 WP-S16-RTR Brushless ESC for 1/16 RC Car, Buggy or Truck

HSP (Hobbywing) WP-S16 25A-Brushless ESC

Programmable Brushless ESC 25A Electronic Speed Controller fitted with Mini Tamiya battery connector. Programmable using the set button by the on/off switch or with the optional program box.

Features:
Specially designed for 1/16th or 1/18th scale brushless RC car RTR applications.
Excellent start-up acceleration and linearity.
Compatible with sensorless brushless motors.
Running Modes: Forward mode (single direction) and Forward/Backward mode.
Proportional ABS braking function, with 4 steps of maximum brake force adjustment, 8 steps of drag-force adjustment.
Different option on start modes (Also called "Punch") from "soft" to "aggressive". 4 settings.
Multiple protection features: Low voltage cut-off protection for lithium or NiMH batteries / Over-heat protection / Throttle signal loss protection / Motor jammed protection.
Programmable Braking force.
Waterproof / Splash proof and dust proof.
Fully programmable.LED indication.
Pre-wired ON/OFF power switch i& set button included.

Specifications:

HSP Part Number: 28405

Model: WP-S16-RTR
NiMH = 4-9 cells,
Lipo = 2 or 3S (3S with fan)
Continuous Current: 25A
Surge Current: 90A
BEC: 6V @ 1A
Fan cooled: No
Battery connection: Mini Tamiya

Brushless Motor compatibility:
2S Lipo: On-road - >12T, Off road >18T, <5000KV 2040 size motor.
3S Lipo: On-road - >18T, Off road >24T, <4600KV 2040 size motor.
